Tesla Model X: Sun Visor - Driver's (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Sun Visor - Driver's (Remove and Replace)

Removal

  1. Remove the upper A-pillar trim (refer to procedure).

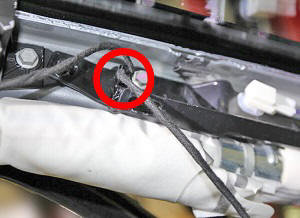

  2. Release the edge clip that secures the electrical harness.

    Sun Visor - Driver's (Remove and Replace)

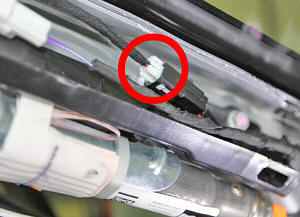

  3. Use a trim tool to disconnect the electrical connector.

    Sun Visor - Driver's (Remove and Replace)

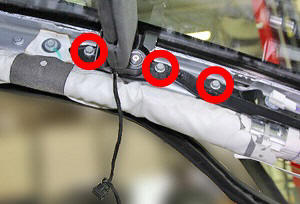

  4. Remove the bolts (x3) that secure the sun visor and support bracket (torque 4 Nm).

    Sun Visor - Driver's (Remove and Replace)

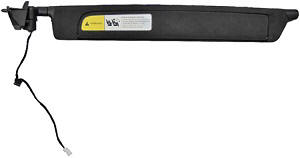

  5. Remove the sun visor from the vehicle.

    Sun Visor - Driver's (Remove and Replace)

Installation

Installation procedure is the reverse of removal.
