Tesla Model X: Trim - Liftgate - Upper (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - Liftgate - Upper (Remove and Replace)

Remove

Open the liftgate. Tip: Set the liftgate to a comfortable working height.

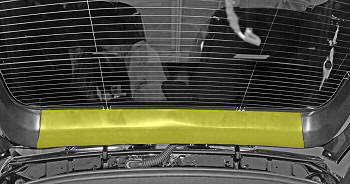

Use a trim tool to release the clips (x9) that secure the upper liftgate trim.
Remove the upper liftgate trim from the vehicle.

Installation Installation procedure is the reverse of removal, except for the following: Caution: Replace any broken clips.
