Tesla Model X: Sway Bar - Rear (Remove and Replace)
Remove
- Remove the rear subframe (refer to procedure).

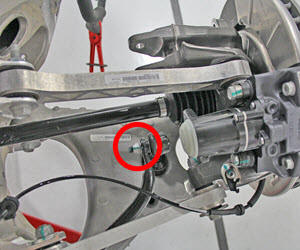

- On each side of the vehicle, remove the nut that secures the
sway bar to the drop link (torque 70 Nm).
Caution: To prevent ball joint damage, always
hold the ball joint pin with a wrench while
loosening or tightening the lock nut.

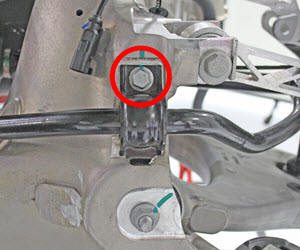

- On each side of the vehicle, release the bolt that secures the
sway bar brackets to the subframe (torque 70 Nm).
- Remove the rear sway bar.
Install
Installation procedure is the reverse of removal.
