Tesla Model X: Trim - Liftgate Trough - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Trim - Liftgate Trough - LH (Remove and Replace)

Removal

Open the liftgate.
While noting the number of turns, remove the liftgate stop.

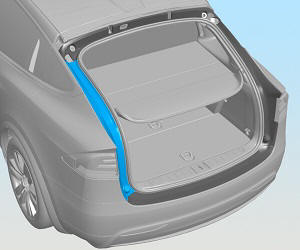

Use a trim tool to release the LH liftgate trough trim.
Note: Components have been removed in this graphic to aid clarity.
Remove the LH liftgate trough trim from the vehicle.

Note: The liftgate trough trim cannot be reused. Discard the liftgate trough trim.

Installation

Installation procedure is the reverse of removal, except for the following:

Ensure that the liftgate trough trim is fully seated.
Install the liftgate stop using the number of turns noted during removal.
Ensure that the liftgate is aligned correctly.
