Tesla Model X: TXV Valve - Evaporator - Front (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Thermal Management / TXV Valve - Evaporator - Front (Remove and Replace)

Removal

  1. Release the charge port high/low pressure pipes from the TXV valve (refer to procedure). Note: It is not necessary to completely remove the charge port high/low pressure pipes from the vehicle.

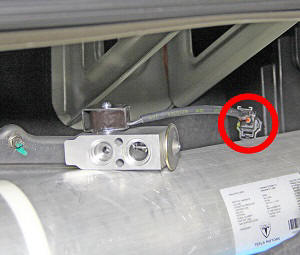

  2. Disconnect the TXV valve electrical connector. Note: Components have been removed in this graphic to aid clarity.

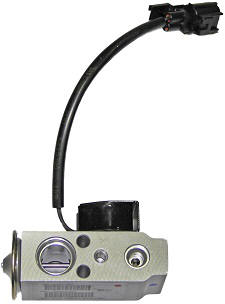

     TXV Valve - Evaporator - Front (Remove and Replace)

  3. Remove the TXV valve from the vehicle.

     TXV Valve - Evaporator - Front (Remove and Replace)

Installation

Installation procedure is the reverse of removal, except for the following:

Note: Inspect the O-rings. Replace as necessary.
