Tesla Model X: Pressure Transducer - High Pressure (Remove and Replace)

Removal

1. Recover refrigerant from the vehicle (refer to procedure).
2. Remove the HEPA filter housing (refer to procedure).

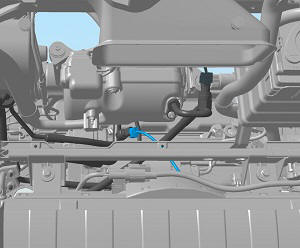

3. Disconnect the electrical connector from the pressure transducer.

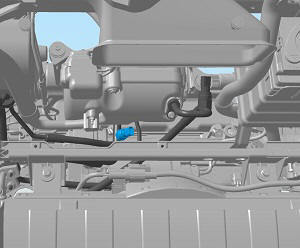

4. Use a 24 mm wrench to remove the pressure transducer from the A/C pipe (torque 8 Nm).

   Caution: Plug pipe connections to prevent ingress of moisture or dirt.



5. Remove the pressure transducer from the vehicle.

Installation procedure is the reverse of removal, except for the following: Recharge the refrigerant.
