Tesla Model X: Carrier - Grille - Front Upper (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Body / Carrier - Grille - Front Upper (Remove and Replace)

Removal

  1. Remove the underhood storage unit (refer to procedure).

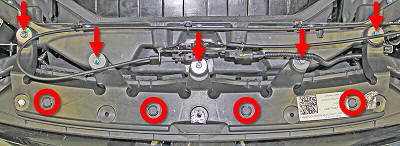

  2. Remove the push clips (x4) and bolts (x5) that secure the front upper grille carrier (torque 7 Nm).

     Carrier - Grille - Front Upper (Remove and Replace)

  3. Release the clip that secures the harness on the LH side of the front upper grille carrier.
  4. Remove the upper grille carrier from the vehicle.
Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.
