Tesla Model X: Panel - Closing - Lower - Front Fascia (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Body / Panel - Closing - Lower - Front Fascia (Remove and Replace)

Removal

  1. Remove the upper closing panel (refer to procedure).

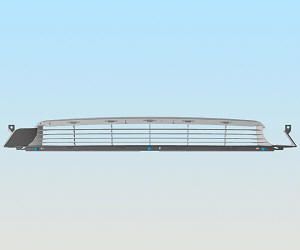

  2. Remove the screws (x3) that secure the lower closing panel to the lower grille (torque 1 Nm).

    Panel - Closing - Lower - Front Fascia (Remove and Replace)

  3. Release the clips that secure the lower closing panel to the lower grille.
  4. Remove the lower closing panel from the lower grille.
Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.
