Tesla Model X: Channel - Glass Run - Front - LH (Retrofit)

Remove

1. Remove the window glass (refer to procedure).

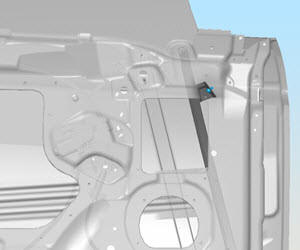

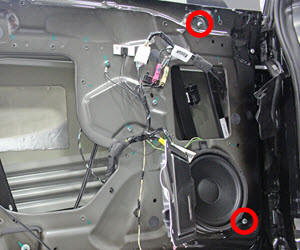

2. Release the 2 nuts that secure the glass run channel to the door (torque 10 Nm).



3. Release the nut that secures the glass run channel to the door (torque 10 Nm).



4. Remove the glass run channel through the top of the door. Discard the glass run channel.

Note: Do not reinstall the glass run channel. The glass run channel is an obsolete component.
