Tesla Model X: Headlight - Adjust - North America

North America (SAE)

1. Prepare a work area for adjusting the headlights:
   • The area is darkened.
   • The ground is flat and level.
   • There is a wall with a white matte surface. Note: The wall should be at least 6 ft (1.8 m) high and 12 ft (3.7 m) wide.
2. Put a piece of tape on the wall to indicate where the beam should show.
   • Air suspension vehicles: 33.4 in (849 mm) from the ground
   • Coil suspension vehicles: 33.8 in (859 mm) from the ground
3. Measure 25 ft (7.62 m) away from the wall and put a piece of tape on the ground to indicate where the vehicle should be parked.
4. Park the vehicle perpendicular to the wall so that the front fasica is flush with the tape that was placed on the ground in the previous step.
5. Air suspension vehicles: Set the suspension height to "Standard".
6. Ensure that all 4 tires are inflated to their recomended settings. Refer to General Information > Technical Data > Tire pressures.
7. Ensure that the vehicle is level by rocking it from side to side.
8. Remove the LH and RH underhood aprons (refer to procedure).
9. Use the touchscreen to turn on the low beam headlights.
10. Cover the RH headlight; ensure that all light from the right headlight is blocked.
11. Locate the headlight adjuster.

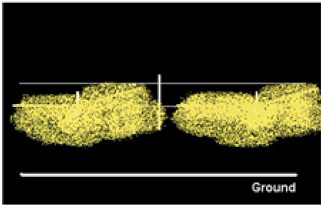

12. Adjust the headlight so that the distance between the ground and the top right part of the beam on the wall is:
    • Air suspension vehicles: 33.4 in (849 mm)
    • Coil suspension vehicles: 33.8 in (859 mm)
    Note: Turning the screw clockwise moves the beam upwards. Turning the screw counterclockwise moves the beam downwards.



13. Repeat steps 10-12 by covering the LH headlight and adjusting the RH headlight.
14. Reinstall all components that were removed for access.
15. Use the touchscreen to put the headlight back to "Auto" mode.
