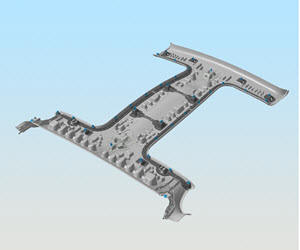

Tesla Model X: Headliner (Remove and Replace)

Remove

1. Open all of the doors and the liftgate.
2. Remove the LH and RH C-pillar upper trim panels (refer to procedure).
3. Remove the LH and RH B-pillar upper trim panels (refer to procedure).
4. Loosen the rear sections of the LH and RH A-pillar upper trim panels (refer to procedure).

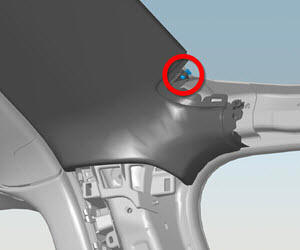

5. Remove the screws that secure the front of the headliner to the body (torque 2 Nm).



6. Release the clips that secure the headliner to the roof.



7. Disconnect the electrical connector.
8. Remove the headliner.

 Caution: Replace any broken clips.

Installation procedure is the reverse of removal.
