Tesla Model X: Light - Fog/Reverse - Rear - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Light - Fog/Reverse - Rear - LH (Remove and Replace)

Remove

  1. Remove the middle liftgate trim (refer to procedure).
  2. Remove the liftgate applique (refer to procedure).
  3. Remove the rubber caps that protect the nuts that secure the light to the body.

     Light - Fog/Reverse - Rear - LH (Remove and Replace)

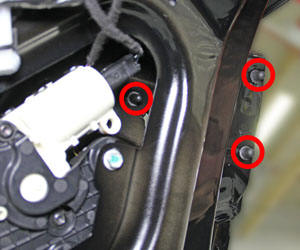

  4. Release the 3 fasteners that secure the light to the body (torque 2.5 Nm).

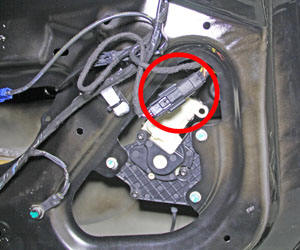

  5. Disconnect the harness.

     Light - Fog/Reverse - Rear - LH (Remove and Replace)

  6. Remove the lamp from the vehicle.
Installation

Installation procedure is the reverse of removal.
