Tesla Model X: Surround - Grille - Front Upper (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Body / Surround - Grille - Front Upper (Remove and Replace)

Removal

  1. Remove the front upper grille carrier (refer to procedure).
  2. Remove the front nose badge (refer to procedure).
  3. Release the push clips on both sides of the front upper grille surround.

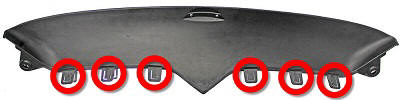

  4. Release the clips (x6) that secure the front upper grille surround to the front upper grille.

     Surround - Grille - Front Upper (Remove and Replace)

  5. Remove the front upper grille surround from the vehicle.
Installation

Installation procedure is the reverse of removal.
